QDD Actuators for Humanoid Lower Limbs

Engineering support for hip, knee, and ankle actuator programs where compact packaging, torque density, and impact response are decisive.

Target Buyer:Best for humanoid robot teams narrowing QDD actuator options for lower-limb prototypes.

Integrated 36 Nm QDD actuator module for high-torque robot joints

Solution Highlights

Lower-limb torque class mapping
Compact hollow routing and cable path review
Prototype-to-batch sourcing path for humanoid joint modules

Common Use Cases

Humanoid hips
Humanoid knees
Humanoid ankles

Implementation Focus

Joint-specific torque, speed, and impact requirements
Packaging envelope, mass target, and cable path
Control bus, encoder, brake, and thermal strategy

Application Decision Summary

A buyer should use this page to decide which joint risks belong to actuator selection, which belong to system validation, and what sample evidence is needed before pilot purchase.

Best Evidence

Start with torque density and connect it to the real robot duty cycle instead of reviewing catalog values alone.

Primary Risk

A lower-limb module is selected only by peak torque

Next Buyer Action

Prepare joint axis, available envelope, and target mass plus validation targets before requesting samples or commercial terms.

Application Fit Method

Application pages should help a buyer decide whether the actuator direction fits the robot job before a commercial conversation starts.

Torque density

30–50 Nm/kg target for hip/knee, 40–60 Nm/kg for ankle

Humanoid lower limbs are constrained by weight, volume, and battery runtime.

Impact response

3–5× body weight at heel strike, recovery within 50 ms

Lower-limb joints must tolerate foot strike, balance recovery, and unexpected contact.

Hollow routing fit

10–20 mm bore for power + signal + brake cables

Cable routing affects lower-limb assembly, maintenance, and reliability.

Robot-Level Validation Plan

The actuator should be checked against the robot motion cycle, not only against a bench specification.

Signal to Check	Review Basis	Evidence to Ask For
Torque density	30–50 Nm/kg target for hip/knee, 40–60 Nm/kg for ankle	Review thermal duty cycle, speed, impact loads, packaging, and current limit before sample order.
Impact response	3–5× body weight at heel strike, recovery within 50 ms	Separate hip, knee, and ankle needs before choosing one actuator family.
Hollow routing fit	10–20 mm bore for power + signal + brake cables	Review thermal duty cycle, speed, impact loads, packaging, and current limit before sample order.

Acceptance Thresholds to Define

Define measurable pass/fail thresholds before the sample arrives. This prevents a subjective review where one team checks torque, another checks packaging, and nobody records whether the actuator can move toward pilot build.

Torque density: Humanoid lower limbs are constrained by weight, volume, and battery runtime.
Impact response: Lower-limb joints must tolerate foot strike, balance recovery, and unexpected contact.
Hollow routing fit: Cable routing affects lower-limb assembly, maintenance, and reliability.

When This Application Needs Extra Review

Some application risks are system-level and cannot be solved by an actuator choice alone. Identify those risks before sample purchase.

A lower-limb module is selected only by peak torque: Review thermal duty cycle, speed, impact loads, packaging, and current limit before sample order.
Broad humanoid requirements hide joint-level differences: Separate hip, knee, and ankle needs before choosing one actuator family.

Application Data to Send First

A useful application inquiry includes enough robot context for engineering to evaluate torque, packaging, control, and delivery risk together.

Fixed Constraints

Joint axis, available envelope, and target mass
Torque-speed estimate and expected impact cases
Cable routing, connector, brake, and encoder target

Review Targets

Battery voltage, driver limits, and communication bus
Prototype and annual volume forecast

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Torque density	30–50 Nm/kg target for hip/knee, 40–60 Nm/kg for ankle	Humanoid lower limbs are constrained by weight, volume, and battery runtime.
Impact response	3–5× body weight at heel strike, recovery within 50 ms	Lower-limb joints must tolerate foot strike, balance recovery, and unexpected contact.
Hollow routing fit	10–20 mm bore for power + signal + brake cables	Cable routing affects lower-limb assembly, maintenance, and reliability.

RFQ Preparation Checklist

Joint axis, available envelope, and target mass
Torque-speed estimate and expected impact cases
Cable routing, connector, brake, and encoder target
Battery voltage, driver limits, and communication bus
Prototype and annual volume forecast

Risk and Mitigation

A lower-limb module is selected only by peak torque: Review thermal duty cycle, speed, impact loads, packaging, and current limit before sample order.
Broad humanoid requirements hide joint-level differences: Separate hip, knee, and ankle needs before choosing one actuator family.

Recommended Products

Integrated robot joint actuator module for compact cable-routing layouts

Outer-rotor torque robot joint module for high-torque actuator review

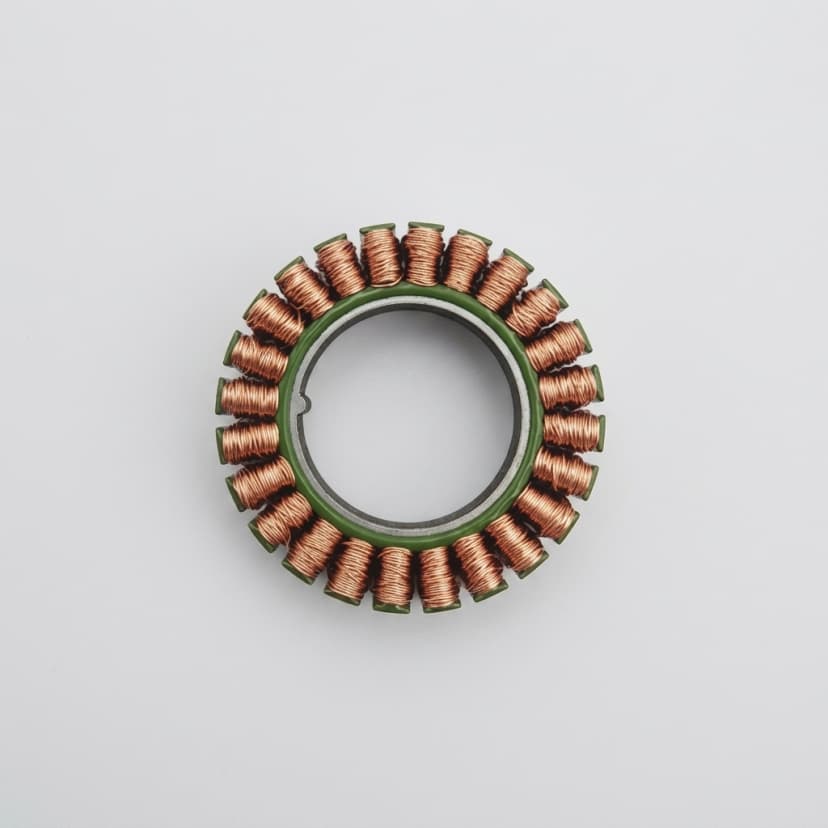

Outer-rotor brushless torque module for robot joint actuator comparison

High-torque direct-drive torque motor reference for QDD sizing comparison

Buyer FAQ

Should humanoid arms and legs use the same QDD module?

Usually no. Lower limbs require different overload, stiffness, thermal, and packaging assumptions than arms.

Can a lower-limb actuator be reviewed from a STEP envelope?

Yes. Share the joint envelope, cable path, load assumptions, and target torque-speed data.
