Quasi-Direct-Drive Explained

A practical guide to QDD actuator architecture: low-ratio transmission, high motor torque, backdrivability, reflected inertia, and where it fits in robot joints.

Best Fit:Best for buyers deciding whether QDD is the right architecture before requesting actuator samples.

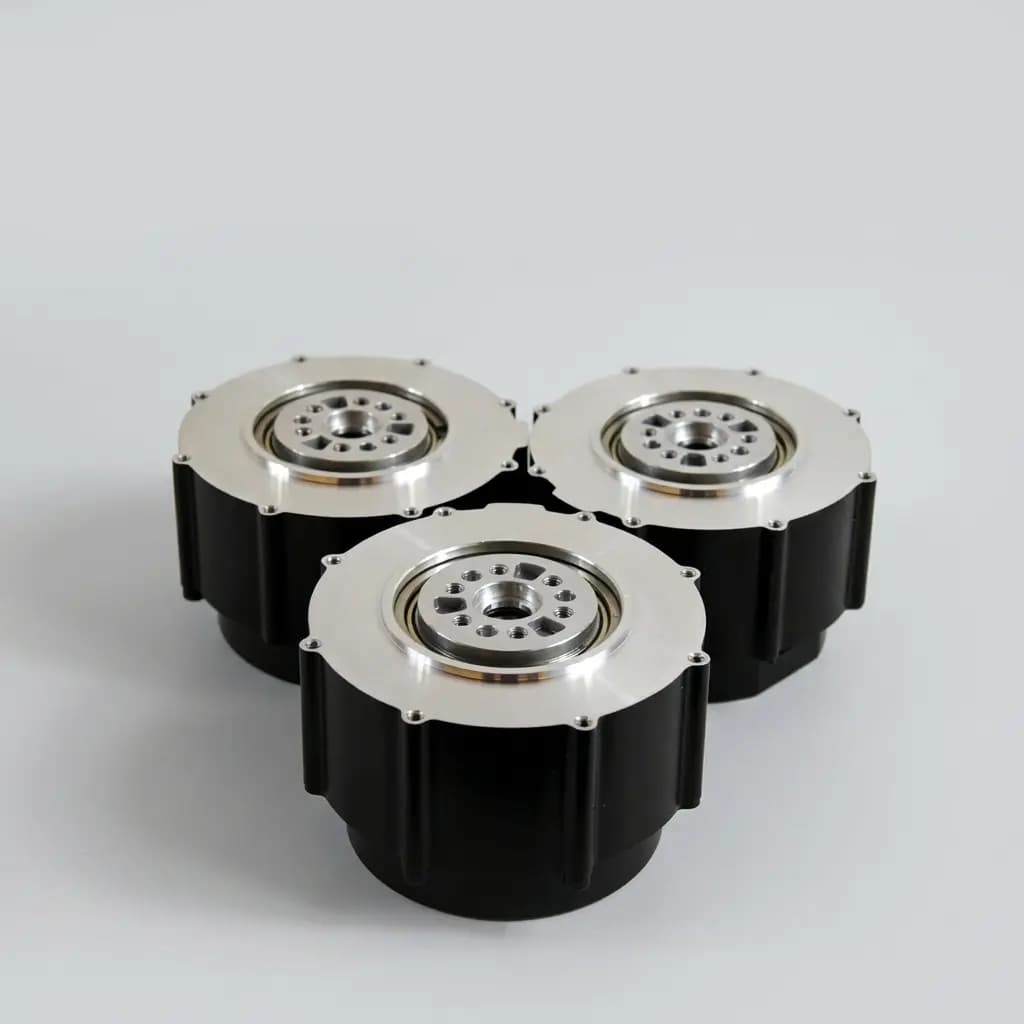

Integrated 36 Nm QDD actuator module for high-torque robot joints

Key Takeaways

QDD combines high-torque motors with low-ratio transmission
The architecture trades some static stiffness for responsiveness and backdrivability
Best fit is dynamic robots, force-control research, and impact-prone joints

Where This Applies

Actuator architecture selection
Robot joint concept review
OEM sample comparison

Engineering Focus

Motor torque, ratio, output speed, and reflected inertia
Backdrivability, torque control, and impact response
Where QDD differs from high-ratio harmonic or belt-driven joints

Engineering Decision Summary

A buyer should leave this note with a testable decision framework: which variables matter, what evidence is missing, and whether the actuator should move into sample selection.

Best Evidence

Start with reduction ratio and connect it to the real robot duty cycle instead of reviewing catalog values alone.

Primary Risk

QDD is chosen for a static precision axis

Next Buyer Action

Prepare target joint and robot application plus validation targets before requesting samples or commercial terms.

How to Use This Engineering Note

Engineering notes should help a buyer make a practical decision, not only define terminology. Use the criteria below to convert the concept into a sample-review plan.

Reduction ratio

6:1–10:1 (QDD) vs 50:1–160:1 (harmonic) vs 30:1–80:1 (cycloidal)

Main lever for output speed, reflected inertia, backdrivability, and torque multiplication.

Motor torque reserve

4–8 Nm continuous motor torque (8318 class) × gear ratio = joint torque

QDD relies more on motor torque than high-ratio reducers, so motor sizing is central.

Evidence to Collect During Review

The note is most useful when the buyer turns the concept into measurable checks during prototype review.

Signal to Check	Review Basis	Evidence to Ask For
Reduction ratio	6:1–10:1 (QDD) vs 50:1–160:1 (harmonic) vs 30:1–80:1 (cycloidal)	Compare stiffness, backlash, holding torque, and backdrivability needs before selecting architecture.
Motor torque reserve	4–8 Nm continuous motor torque (8318 class) × gear ratio = joint torque	Compare stiffness, backlash, holding torque, and backdrivability needs before selecting architecture.

Acceptance Thresholds to Define

Define measurable pass/fail thresholds before the sample arrives. This prevents a subjective review where one team checks torque, another checks packaging, and nobody records whether the actuator can move toward pilot build.

Reduction ratio: Main lever for output speed, reflected inertia, backdrivability, and torque multiplication.
Motor torque reserve: QDD relies more on motor torque than high-ratio reducers, so motor sizing is central.

Where This Guidance Has Limits

The guidance is a selection framework. Final actuator fit still depends on the complete robot system, controller, and validation result.

QDD is chosen for a static precision axis: Compare stiffness, backlash, holding torque, and backdrivability needs before selecting architecture.

Data That Makes the Review Actionable

When sending an engineering question, include enough context for the supplier to answer with constraints and next tests instead of a generic definition.

Fixed Constraints

Target joint and robot application
Torque-speed-voltage envelope
Backdrivability or force-control requirement

Review Targets

Mechanical envelope and desired ratio range
Sample quantity and validation goal

Engineering Image References

Product photos are used here as architecture references for buyer-side discussion. Final actuator selection depends on the validated joint envelope, ratio, torque-speed duty, and interface requirements.

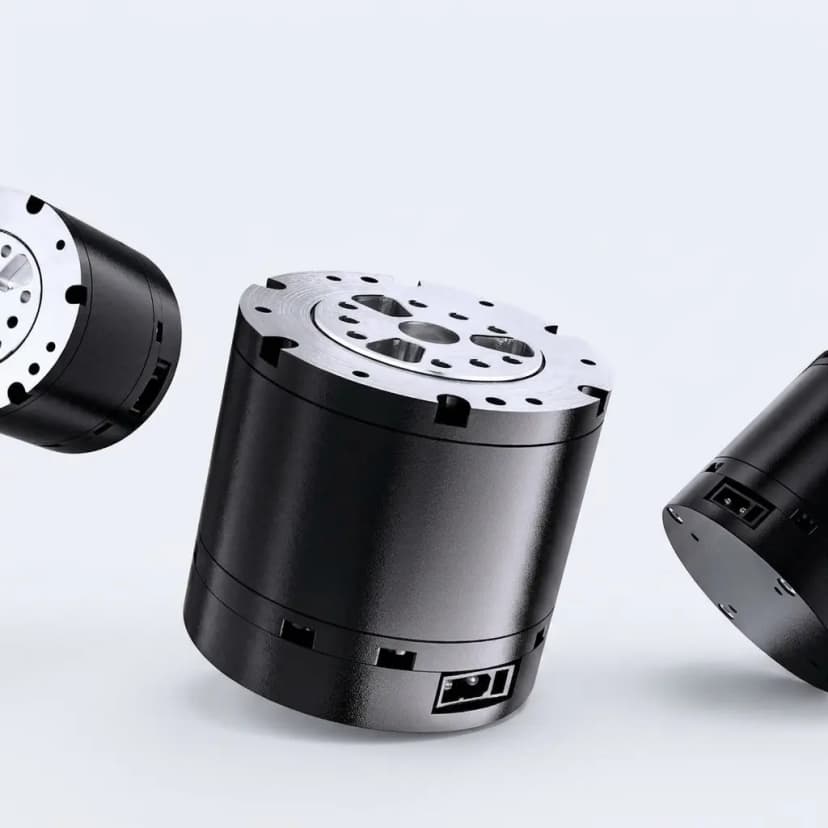

Integrated 14 Nm QDD actuator module for compact robot joints

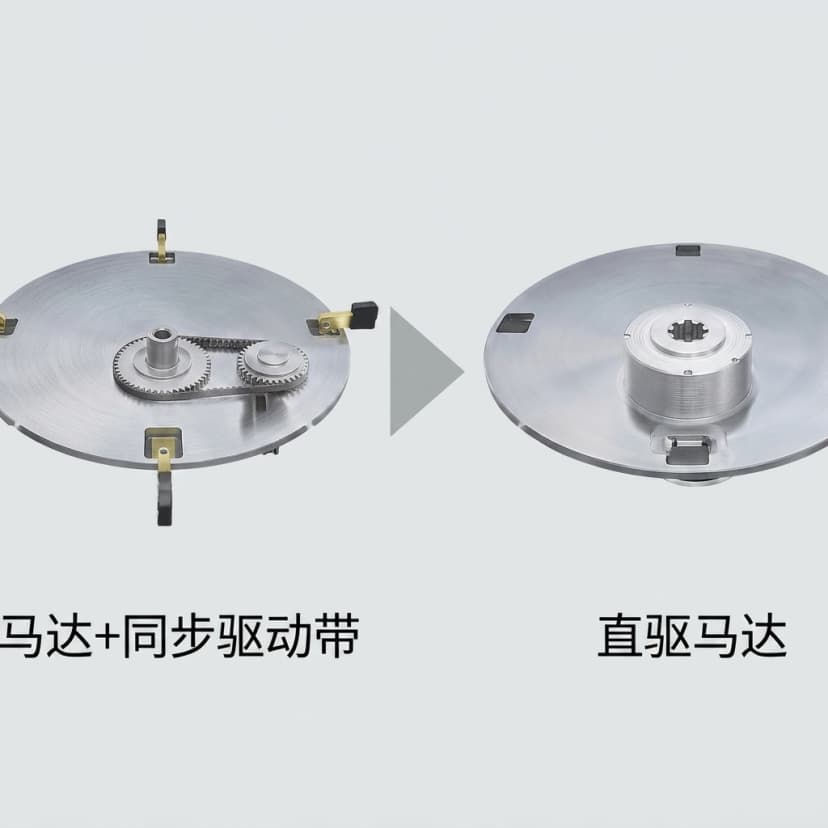

Direct-drive motor reference for QDD architecture and ratio comparison

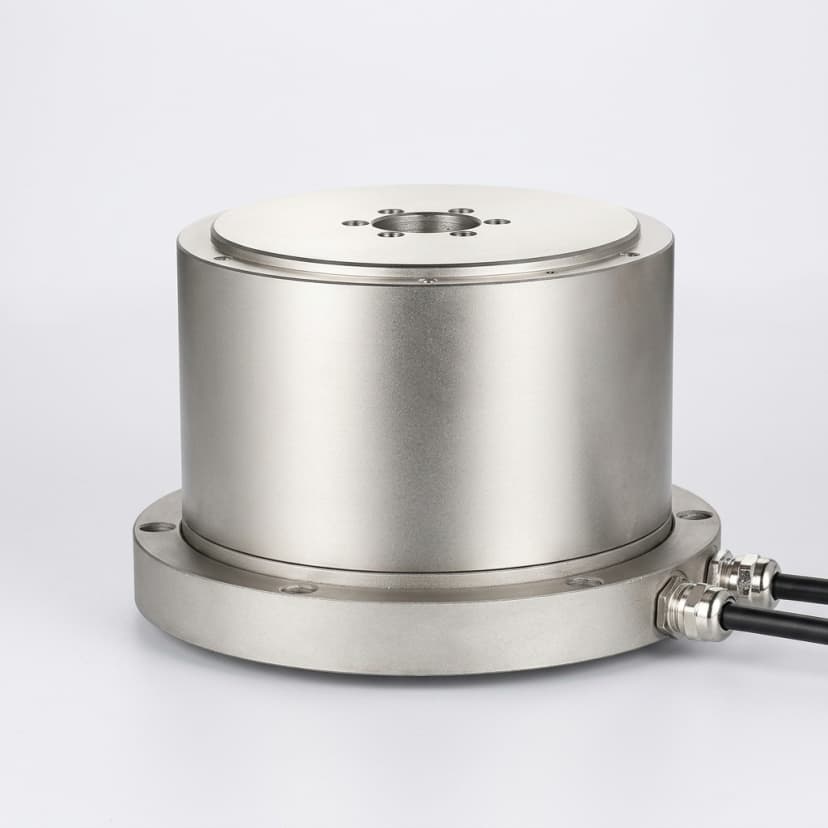

High-torque direct-drive torque motor reference for QDD sizing comparison

Selection Criteria

Criterion	Typical Review	Why It Matters
Reduction ratio	6:1–10:1 (QDD) vs 50:1–160:1 (harmonic) vs 30:1–80:1 (cycloidal)	Main lever for output speed, reflected inertia, backdrivability, and torque multiplication.
Motor torque reserve	4–8 Nm continuous motor torque (8318 class) × gear ratio = joint torque	QDD relies more on motor torque than high-ratio reducers, so motor sizing is central.

Sample Review Inputs

Target joint and robot application
Torque-speed-voltage envelope
Backdrivability or force-control requirement
Mechanical envelope and desired ratio range
Sample quantity and validation goal

Risk Controls

QDD is chosen for a static precision axis: Compare stiffness, backlash, holding torque, and backdrivability needs before selecting architecture.

Buyer FAQ

Is QDD the same as direct drive?

No. QDD still uses reduction, but the ratio is intentionally low compared with many precision reducer joints.
