Low-Ratio Planetary Actuators

Compact planetary transmission actuator platforms for QDD robot joints where shock tolerance, packaging, and control response matter.

Target Buyer:Best for mechanical engineers choosing a reducer architecture for responsive robot joints.

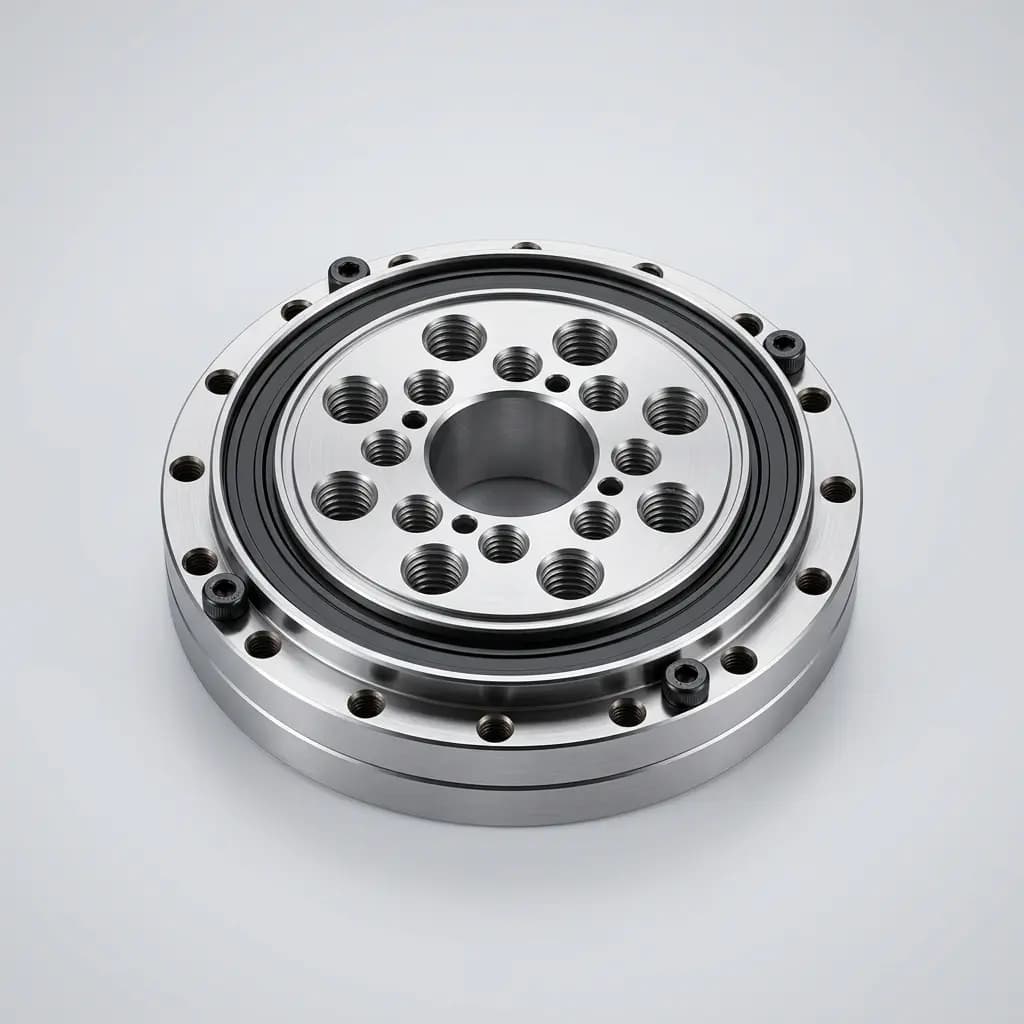

Robot joint module gear assembly for low-ratio actuator architecture

Capability Highlights

Coaxial low-ratio planetary transmission options
Robust architecture for dynamic robot impact cases
Configurable ratio, output flange, shaft, and bearing layout

Typical Applications

Robot dog leg joints
Humanoid hip and knee prototypes
Industrial and academic research platforms

Engineering Focus

Ratio, backlash, stiffness, efficiency, and life target
Bearing load, output shaft/flange layout, and sealing needs
Lubrication, shock load, duty cycle, and service environment

Buyer Decision Summary

A buyer should leave this page with a shortlist decision: whether this actuator family deserves a sample review, what must be measured first, and which constraints must be fixed before price comparison.

Best Evidence

Start with backlash and connect it to the real robot duty cycle instead of reviewing catalog values alone.

Primary Risk

Transmission life is estimated from nominal torque only

Next Buyer Action

Prepare ratio target or torque-speed curve plus validation targets before requesting samples or commercial terms.

How to Evaluate This Actuator Family

Use this page to turn a product family into a shortlist decision. The useful comparison is not one headline torque number; it is how the actuator behaves inside the real robot joint.

Backlash

5–15 arcmin (single-stage planetary), 3–8 arcmin (precision grade)

Affects position control, torque ripple, gait smoothness, and repeatability.

Overload capacity

2.5–3× continuous torque for <3 seconds

Dynamic robots frequently see shock loads beyond nominal torque.

Efficiency

90–95% (single-stage planetary) vs 65–80% (harmonic drive)

Impacts battery runtime, heat generation, and backdrivability.

Sample Validation Plan

Before a batch decision, buyers should define the evidence expected from sample review and internal testing.

Signal to Check	Review Basis	Evidence to Ask For
Backlash	5–15 arcmin (single-stage planetary), 3–8 arcmin (precision grade)	Use real duty cycle, shock load, radial load, and thermal data during selection.
Overload capacity	2.5–3× continuous torque for <3 seconds	Balance backlash, efficiency, manufacturability, lead time, and budget before sample build.
Efficiency	90–95% (single-stage planetary) vs 65–80% (harmonic drive)	Use real duty cycle, shock load, radial load, and thermal data during selection.

Acceptance Thresholds to Define

Define measurable pass/fail thresholds before the sample arrives. This prevents a subjective review where one team checks torque, another checks packaging, and nobody records whether the actuator can move toward pilot build.

Backlash: Affects position control, torque ripple, gait smoothness, and repeatability.
Overload capacity: Dynamic robots frequently see shock loads beyond nominal torque.
Efficiency: Impacts battery runtime, heat generation, and backdrivability.

When This Family May Not Fit

A QDD actuator family is valuable only when the application needs its trade-offs. The same module can be a poor fit when the surrounding joint requirements point in a different direction.

Transmission life is estimated from nominal torque only: Use real duty cycle, shock load, radial load, and thermal data during selection.
Low backlash is requested without considering cost and friction: Balance backlash, efficiency, manufacturability, lead time, and budget before sample build.

Buyer Inputs That Improve the First Reply

A complete first inquiry shortens review loops because engineering can separate fixed constraints from adjustable actuator choices.

Fixed Constraints

Ratio target or torque-speed curve
Radial and axial load assumptions
Output shaft/flange drawing and bolt pattern

Review Targets

Backlash target and allowable compliance
Ingress protection and operating environment

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Backlash	5–15 arcmin (single-stage planetary), 3–8 arcmin (precision grade)	Affects position control, torque ripple, gait smoothness, and repeatability.
Overload capacity	2.5–3× continuous torque for <3 seconds	Dynamic robots frequently see shock loads beyond nominal torque.
Efficiency	90–95% (single-stage planetary) vs 65–80% (harmonic drive)	Impacts battery runtime, heat generation, and backdrivability.

Engineering Documents by RFQ

Document packages are shared after the actuator family, joint envelope, and program context are clear. Ask for available datasheets, drawings, CAD files, torque-speed notes, compliance records, or test reports during RFQ review.

Document	Status	RFQ Input Needed
Datasheet PDF	Available by actuator class review	Torque, speed, voltage, and quantity target
2D drawing	Available by mechanical envelope review	Shaft, flange, bolt pattern, and connector constraints
3D CAD / STEP / IGES	Shared when applicable after RFQ context	Joint envelope, mounting direction, and confidentiality needs
Torque-speed / thermal envelope	Program-dependent review	Duty cycle, ambient temperature, current limit, and mounting heat path
Compliance or test reports	Requestable per program when available	Destination market and required document list

How to Request CAD / Datasheets Compliance Document Scope

RFQ Checklist

Ratio target or torque-speed curve
Radial and axial load assumptions
Output shaft/flange drawing and bolt pattern
Backlash target and allowable compliance
Ingress protection and operating environment

Risk Controls

Transmission life is estimated from nominal torque only: Use real duty cycle, shock load, radial load, and thermal data during selection.
Low backlash is requested without considering cost and friction: Balance backlash, efficiency, manufacturability, lead time, and budget before sample build.

Product Gallery

Flange-output robot joint actuator module for mechanical interface review

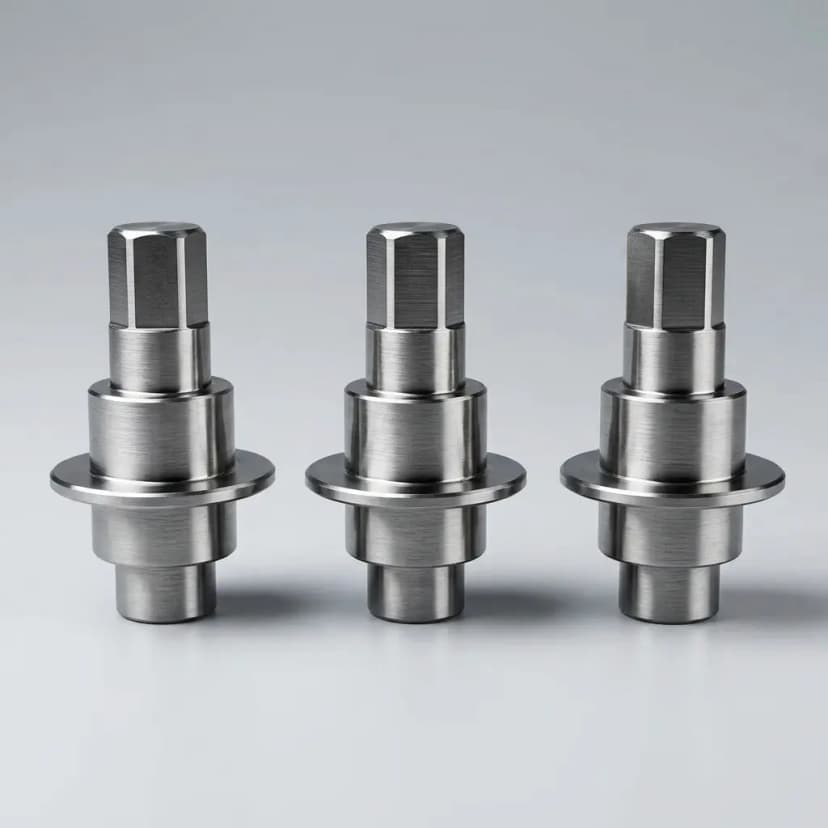

Robot joint gear flange module for low-ratio actuator packaging

22 Nm planetary robot joint module for low-ratio actuator validation

High-torque planetary actuator module for robot joint sizing review

Buyer FAQ

Can the planetary stage be tuned for lower backlash?

Yes, but backlash, efficiency, manufacturability, cost, and lead time should be balanced at the design stage.

Is a planetary QDD joint the same as a harmonic-drive joint?

No. Planetary QDD designs usually target lower ratio, higher backdrivability, and different impact behavior.
